The Playback Window has various control buttons displayed at the top of the window, these are explained below.

		Tools Clicking this button will display the additional controls below the playback image (and film strip if enabled).
		Film Strip Clicking on this button causes the filmstrip to be displayed at the bottom of the playback window (see example opposite). This allows you to see the next and previous images. Clicking again will restore to normal mode.
		Play Clicking on this will start the sequence of images playing in order. Clicking again will stop the sequence.
		Loop Mode Clicking this will put playback into loop mode. This means the last group of images recorded will be played.
		Zoom Down Button This button when clicked causes the picture to be zoomed down one level.
		Zoom Back Button This button when clicked causes the picture to be zoomed/restored to its natural size.
		Zoom Up Button This button when clicked causes the picture to be zoomed up one level.
		Copy Image Button This button copies the current image to the clipboard enabling you to paste it into other applications such as a graphics program.
		Print Image Button This prints the current image out to the default system printer, the image security signature is also printed.
		Security Information Button Clicking this button displays a window with the image security information displayed. This is a unique digital signature applied to the image to prevent any form of image editing.

Playback Controls

The controls for the playback window allow you to quickly and easily navigate to any point of interest in the recorded images. A day's worth of time is shown as a single bar with red marks indicating points when motion occurred. Note that since a single mark represents a time period itself, different height marks indicate how much motion is within the time period covered by a single mark. The higher the bar, the motion was detected in that time. This bar is referred to as the timeline.

At either side of the timeline are controls to advance or reverse a single frame at a time. Beneath the timeline is a slider that allows you to jump instantly within a 24hr period. For extra precision, you can enter a specific time in the text boxes provided and click on "Go To".

A dropdown calendar allows you to select the date you'd like to look at. When the data is changed, the window automatically reloads the list of images. You can force this to happen by clicking on the Refresh button.

The speed control allows adjustment of the playback speed, moving the slider to the right causes playback speed to be increased.

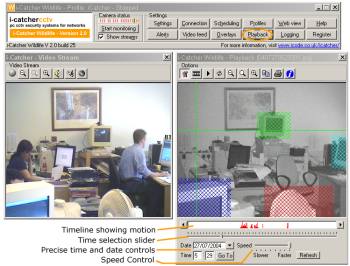

The playback window, showing some of the key playback controls.

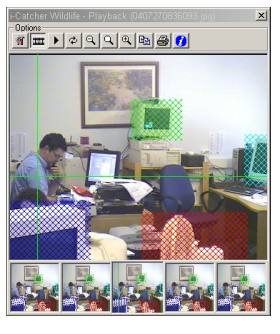

Playback Viewer Window with film strip
